Description

OVERVIEW

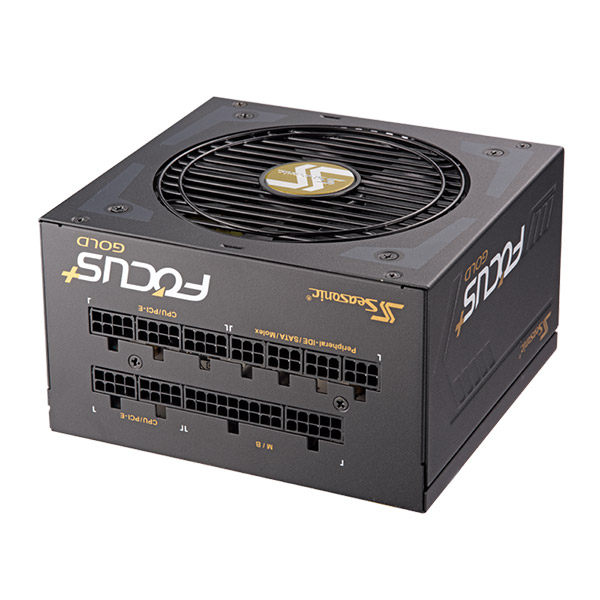

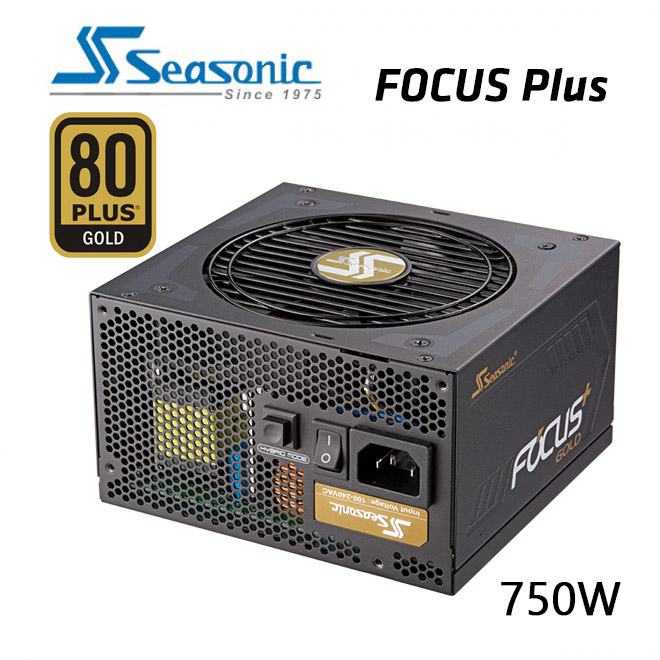

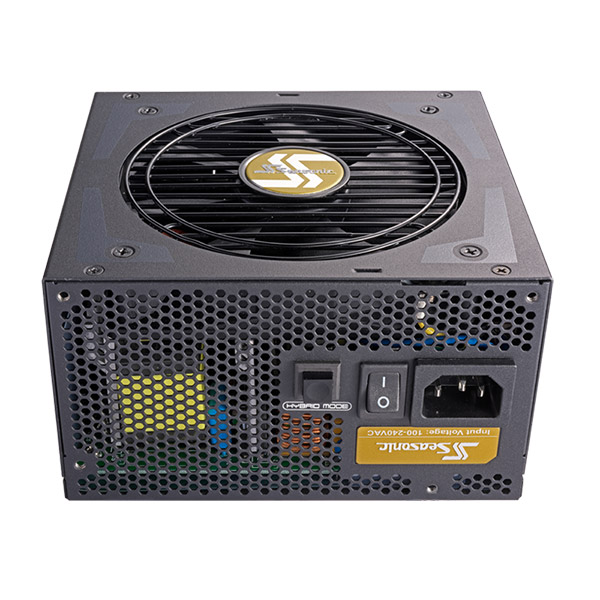

High performance and great reliability in this new line of small form factor and modern FOCUS+ Gold power supplies are a guarantee for many years of undisturbed and problem-free usage. The FOCUS+ Gold 750 watt power supplies meet the latest ATX and EPS standards and are ready to be sued with any of the state-of-the-art Intel® Core™ i7 Processors. All FOCUS+ Gold products come equipped with a wide range of safety and protection features to safeguard the system components in critical situations and they have the official approvals of the most important safety agencies.

SPECIFICATIONS

• 80PLUS®: Gold
• Form Factor: Intel ATX 12 V
• Dimensions: 150 mm (W) x 140 mm (L) x 86 mm (H)
• Fan Information

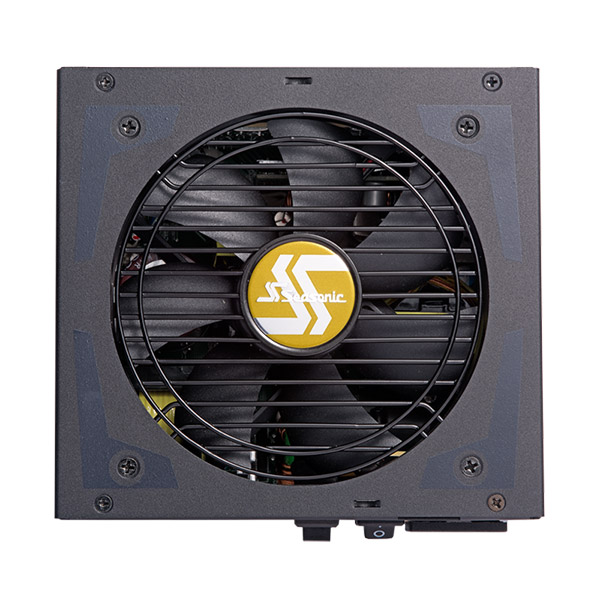

• Fan Size: 120 mm
• Fan Control: Hybrid Silent fan Control
• Fan Bearing: Fluid Dynamic Bearing
• Life Expectancy: 70,000 hours at 40 °C, 15 % – 65 % RH
• Cable Information
• Modularity: Fully Modular
• Cable type: Flat black cables
• Electrical Features
• Operating Temperature: 0 – 50 °C
• MTBF @ 25 °C, excl. fan: 100,000 hours
• AC Input: Full Range
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and Environmental
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
