Description

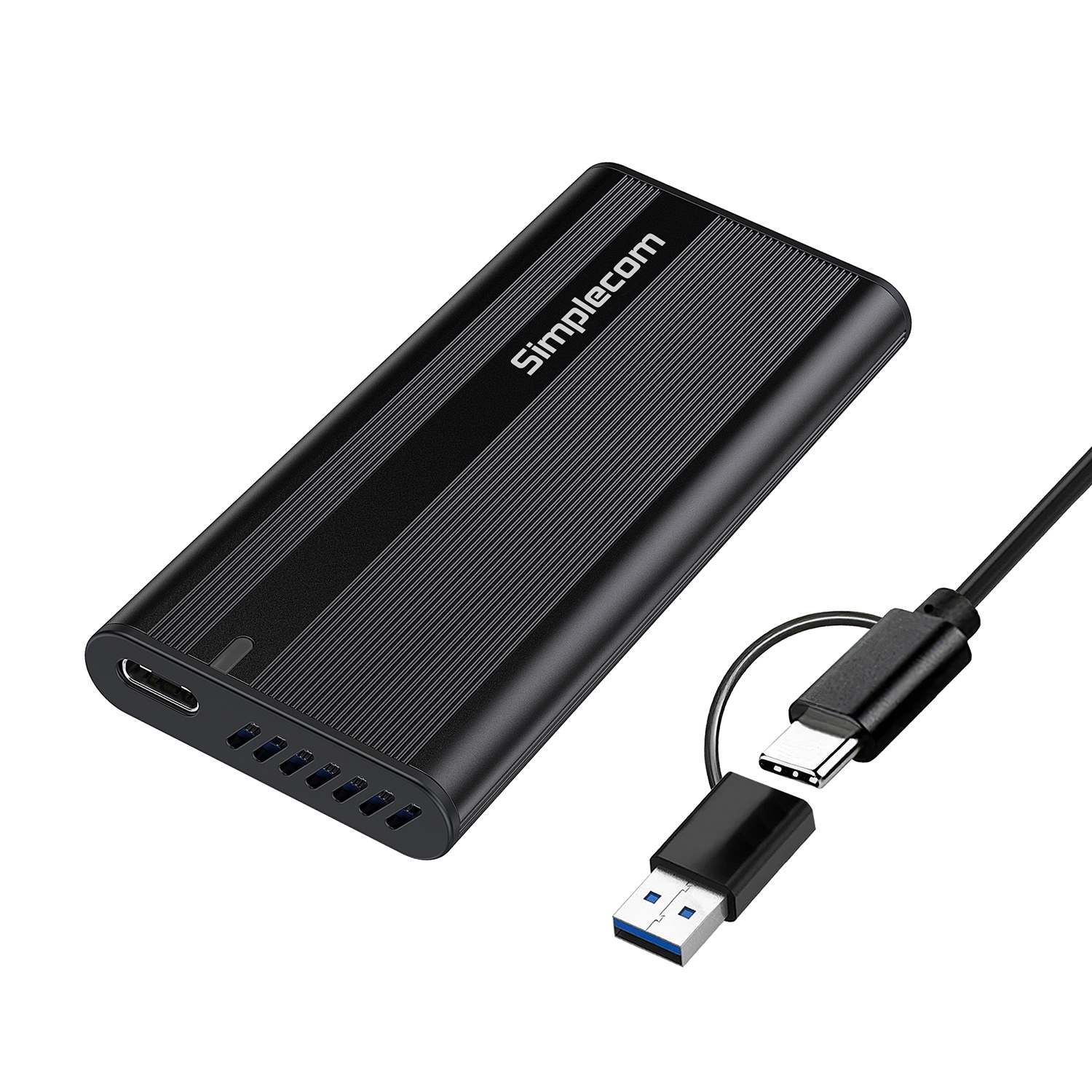

Simplecom SE505 NVMe M.2 SSD to USB-C Enclosure USB 3.2 Gen 2 10Gbps

SE505 is a compact and portable M.2 SSD enclosure for NVMe M.2 SSD. It supports USB 3.2 Gen 2 standard, which offers data transfer speeds of up to 10Gbps. This ensures fast data transfer rates when connected to compatible devices.

The tool-free design of the enclosure allows for quick and easy installation of SSDs without the need for any tools. It also features an ultra-slim aluminium case that is not only durable but also convenient for travel. The material choice likely provides good protection for the SSD while keeping the form factor lightweight.

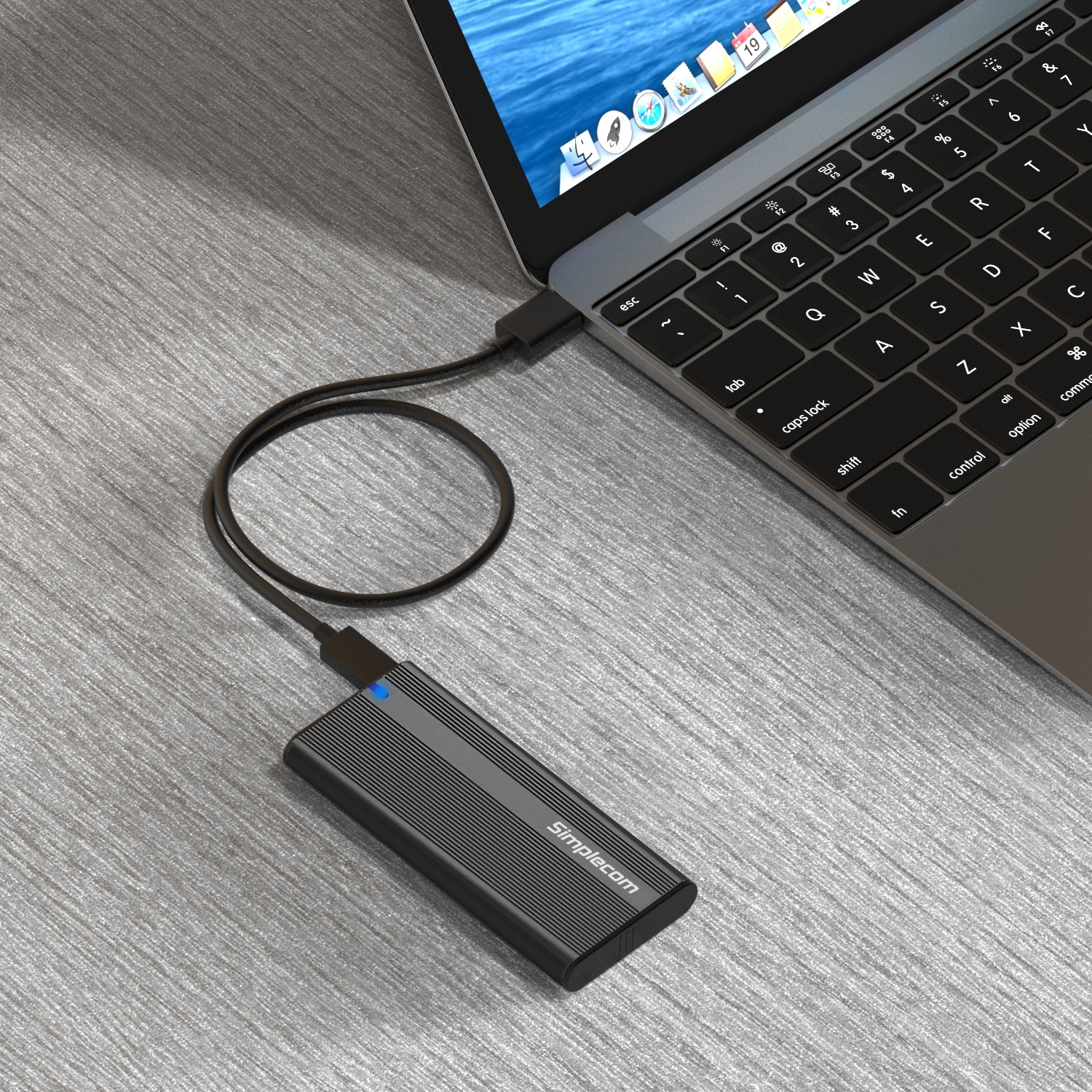

It’s USB powered, plug and play, meaning it can be connected to a device without requiring additional power or driver software, which simplifies the user experience.

Features

• Designed for NVMe protocol based M.2 SSD
• Convert NVMe M.2 SSD to a USB portable drive
• USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps

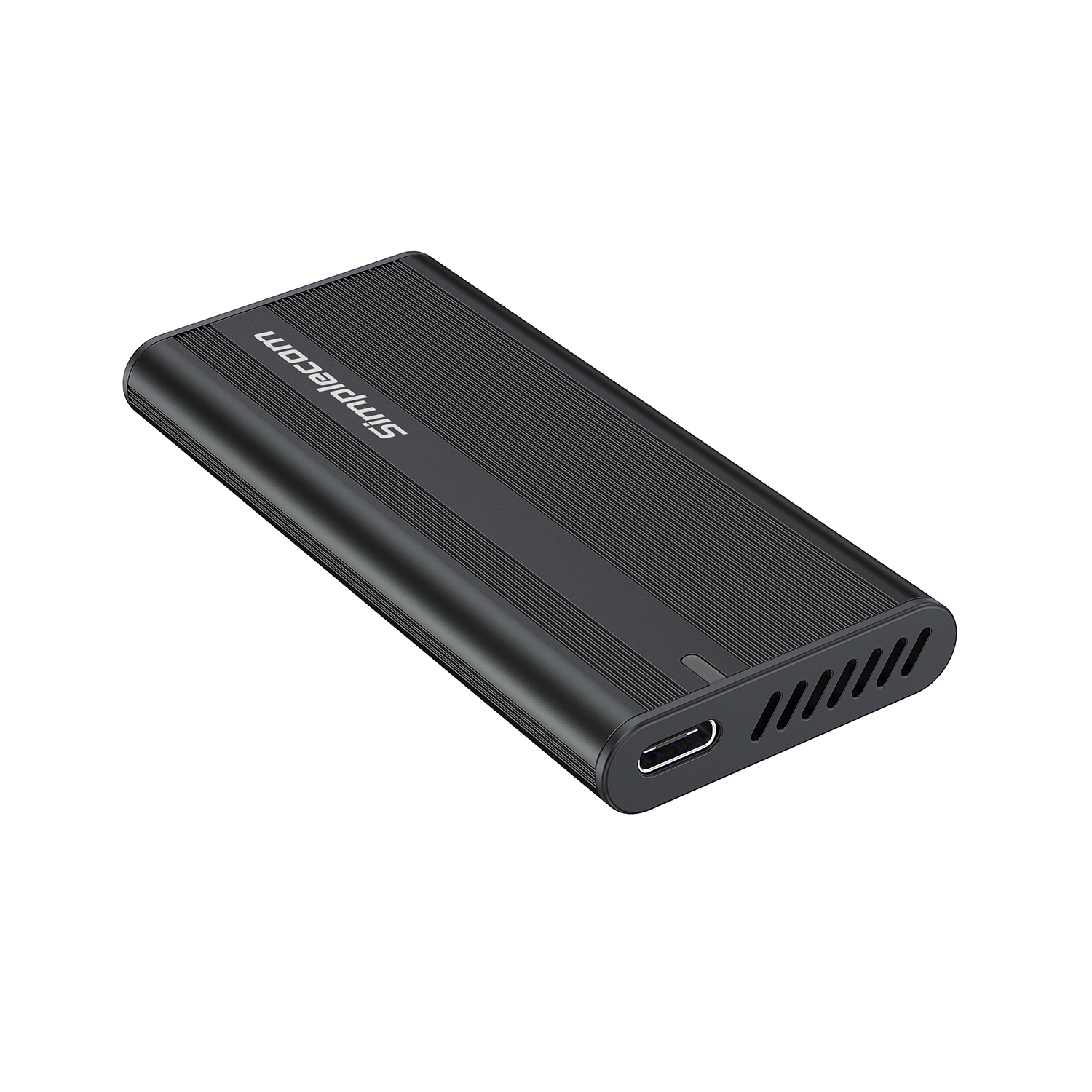

• Ultra-slim aluminium case, durable and convenient, ideal for traveling

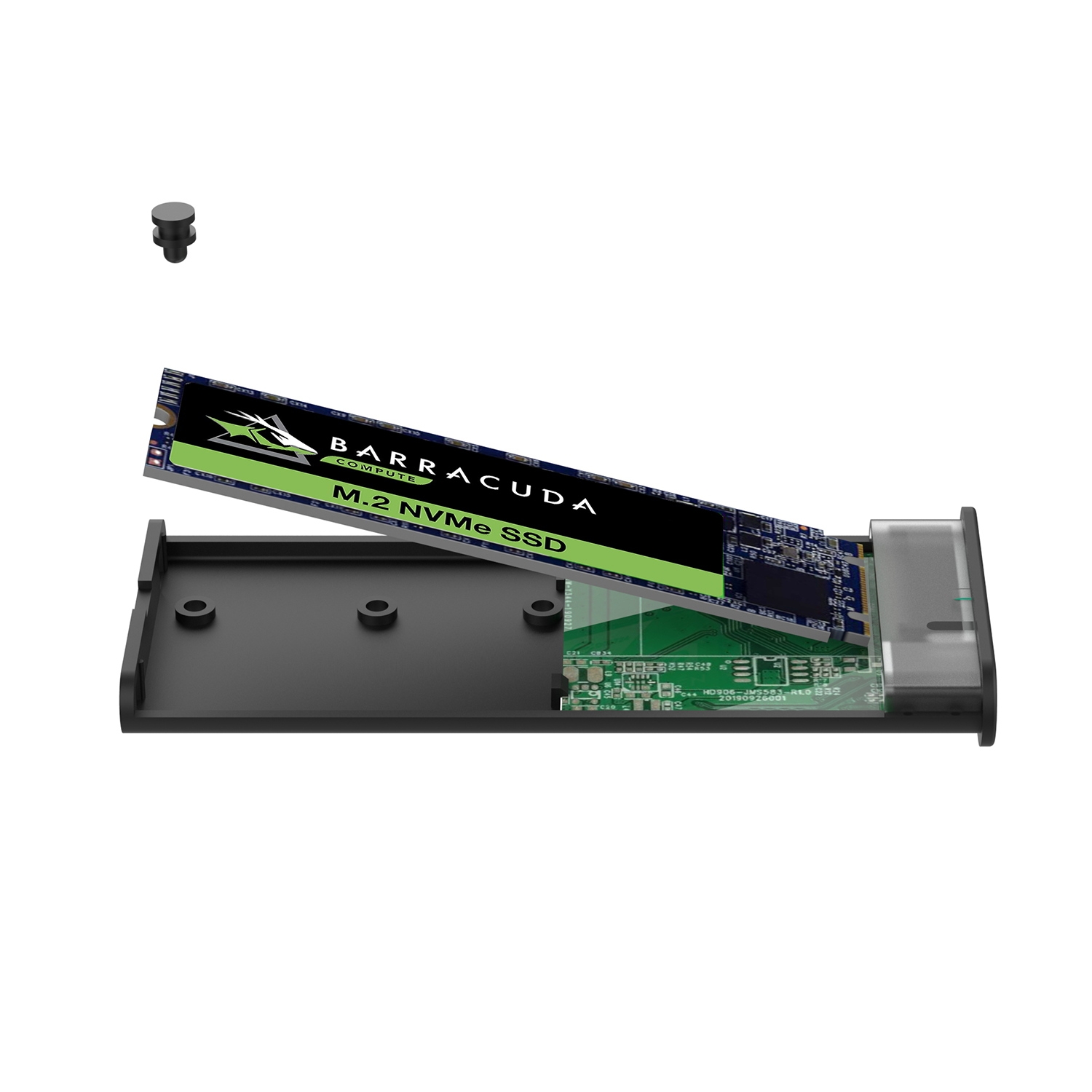

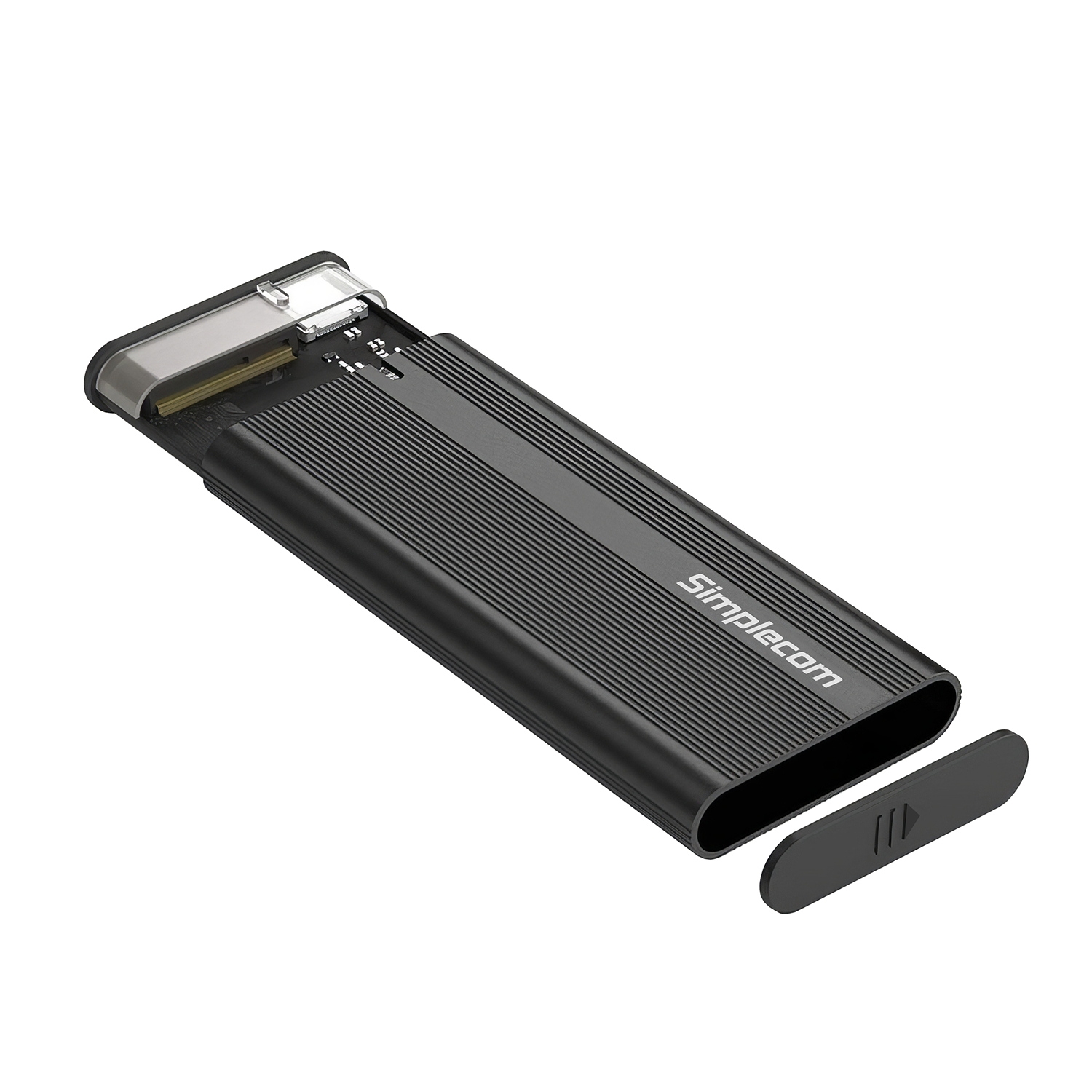

• Tool-free design, quick and easy installation of SSDs without any tools
• Supports USAP for faster data transfer speed and maximum performance
• Supports TRIM command for improved data writing to extend SSD life
• USB bus powered, no external power required
• Plug and play, no additional drivers required

Specifications

• Model: SE505
• Interface: USB-C (USB 3.2 Gen 2)
• Housing Material: Aluminium, ABS Plastic
• Transfer Rate: NVMe M.2 up to 10Gbps
• Compatible M.2 Protocol: NVMe M.2
• Compatible M.2 Size: 2242, 2260, 2280
• Dimension: 94x40x10mm (LxWxH)
• Operating System Support: Windows 7 and above, MacOS 10.8 and above

Package Contents

• 1x SE505 NVMe M.2 SSD Enclosure
• 1x USB-C + USB-A hybrid cable

Important Note

• SE505 supports NVMe protocol based M.2 SSD only (M Key), SATA M.2 SSD is not supported
